2 Car Garage Plans : 30 x 30, 10' Wall, 10/12, Storage Above with Materials List - ( Digital Download )

CUSTOM DESIGN : Available Upon Request - Message for Details and Fees

Welcome to FIELDSTONE DESIGN ( FSD ), we would love to help with your construction project. FSD plan sets are designed to increase communication between Homeowners, General Contractors, Subcontractors, Suppliers, Lenders, and Code Enforcement.

THE SPARTAN : ( Garage Plans )

- Building Size = 30'-0" x 30'-0"
- Pitch / Roof Slope = 10/12
- Wall Height = 10'-0"
- Garage Door Size = 18'-0" x 8'-0"

HEIGHT = 23'-10" +/-
MID HEIGHT = 17'-11" +/-

THE SPARTAN : A Standard 2 Car Garage.
This structure is perfect for parking (2) Vehicles with a Storage or Studio Above.
Stair Access is provided at the Rear of the Layout away from Traffic.

The Plan Set Includes :

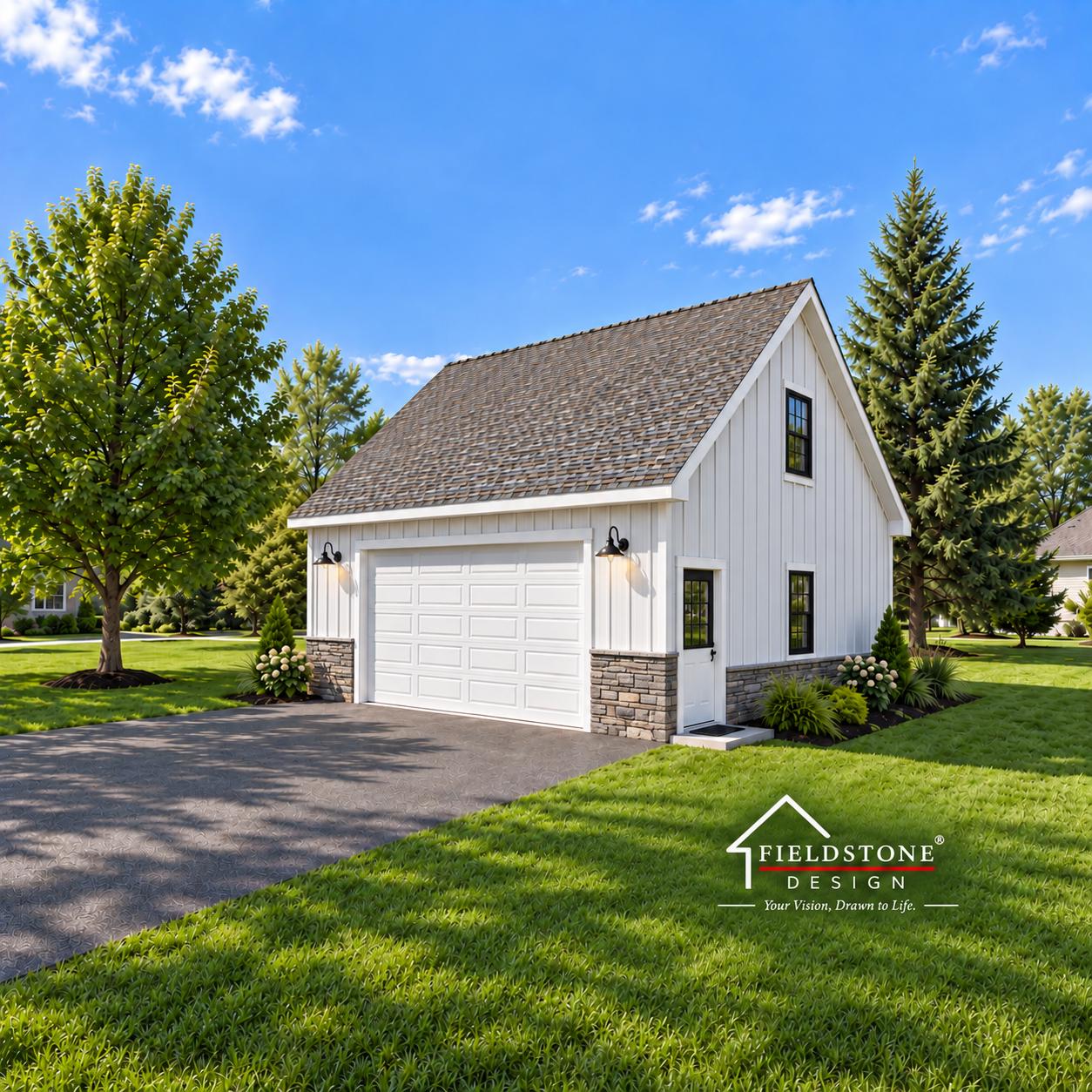

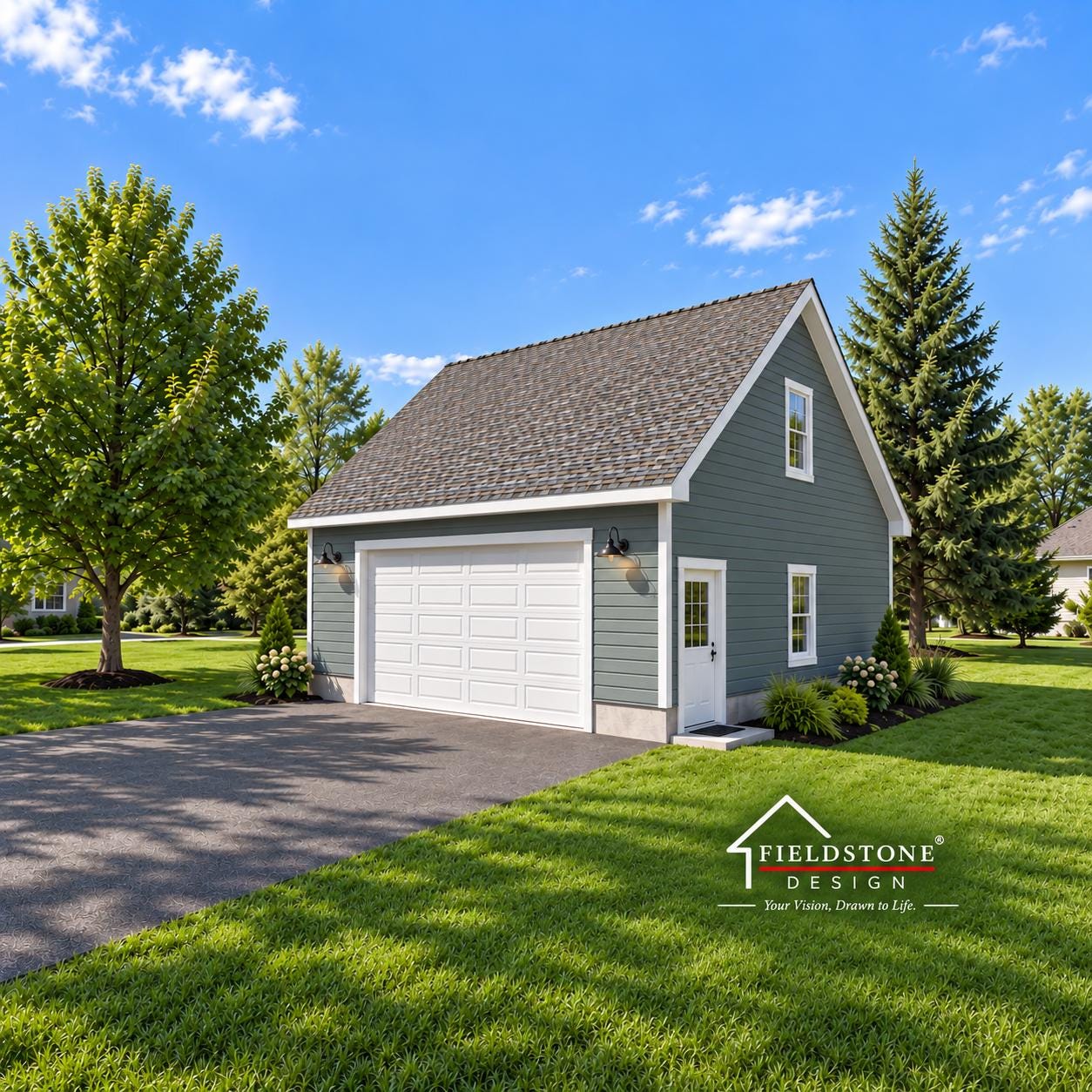

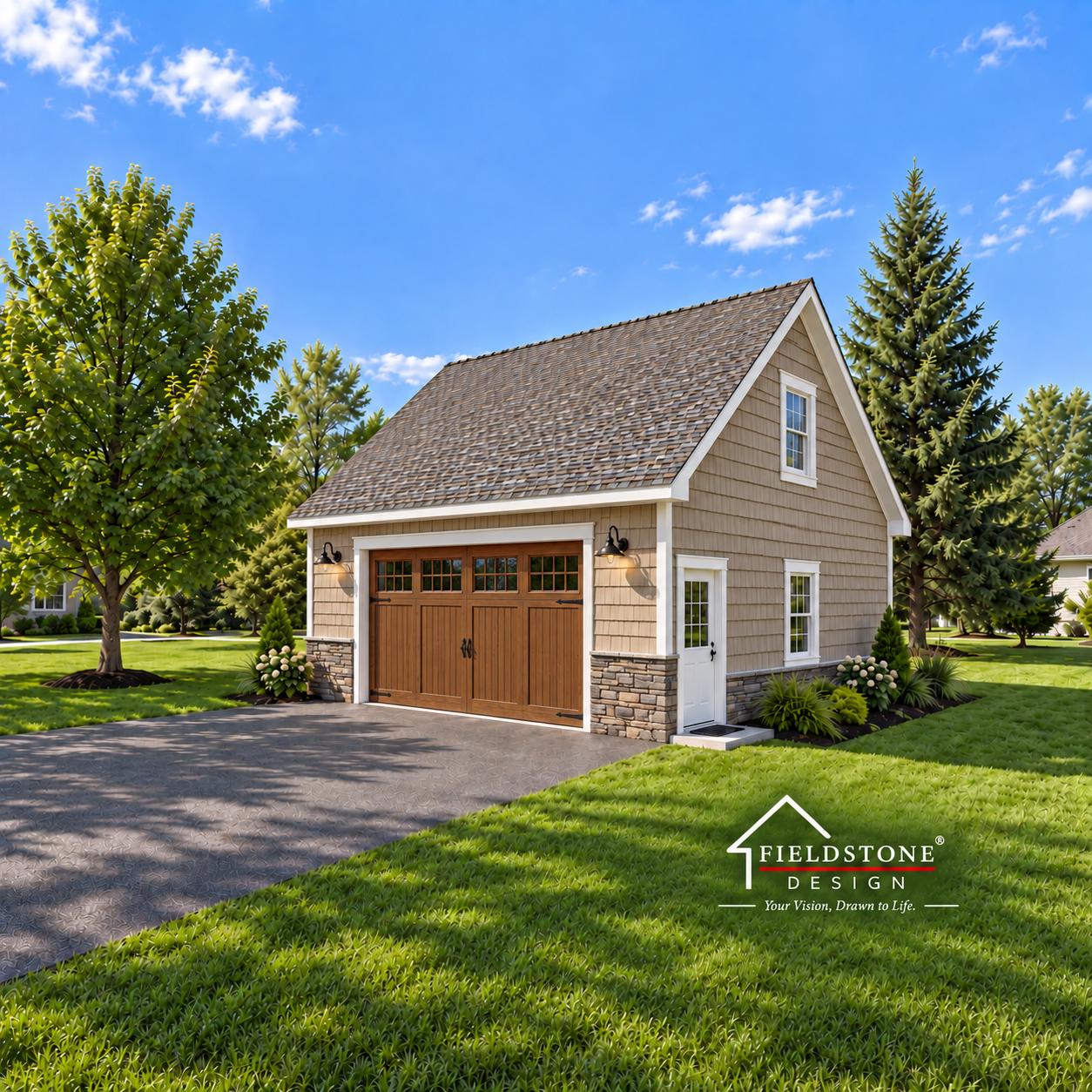

- 3D VIEWS : in a variety of colors to stimulate ideas.
- LAYOUTS : of the 1st level and 2nd level.
- ELEVATIONS : of all (4) sides.
- BASIC SECTION: with material designations.
- FOUNDATION : Options Available
- SPECIFICATIONS SHEET : As Designed
- MATERIALS CALCULATIONS : Assist Estimation
- WINDOW AND DOOR SCHEDULE : As Designed
- TRUSS LAYOUT : with Truss Details

Review with your Supplier for Local Code Compliance ( Recommended )

Sample Plan Sets are Available Upon Request

Fieldstone Design Inc is dedicated to providing a high quality product that is intended to increase communication between the Homeowner, General Contractors, Sub-contractors, Building Suppliers, Code Enforcement, and Financial Institutions. Though the Primary focus of Fieldstone Design is for Estimating Purposes, these plans sets can be used for construction as well with Local Code Enforcement Approval.

DISCLOSURE : Some Municipalities require an Engineered Stamped Plan Set by a Local Architect or Engineer from your Municipality. Please consult your Code Enforcement Authority for your Local Requisites.

Present this Plan Set along with any minor personal requests to your local Building Materials Salesman for an estimate today !

Upon Completed Transaction you will receive within Etsy; a Link for Immediate Digital Download of the Plan Set.

Fieldstone Design Inc is a Drafting Service

Thank You so much for viewing and we hope to be of Grand Assistance to you and your construction project.

Sheldon S. Hyde
Fieldstone Design Inc

Please Direct Questions to :
sheldon @ FieldstoneDesign.com

COPYRIGHTED DOCUMENTS
( Illegal to Reproduce )

Plan Sets have been licensed to the Original Purchaser for Permit and Construction where applicable for (1) Structure. It is unlawful to reproduce these documents without written permission in the form of a licensing agreement or Membership to Fieldstone Design Inc.
